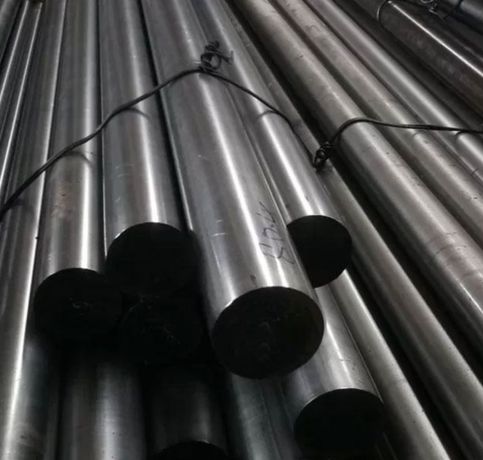

Hemi Metals is a trusted name in Hamilton’s industrial landscape, supplying quality materials to New Zealand’s engineering sector. We are proud to offer Carbon Steel EN-44 Bars, a product renowned for its dependable performance and durability. Sourced and supplied with a commitment to local industry, these bars are a cornerstone for demanding applications where strength is non-negotiable. Our team understands the precision required in modern manufacturing, making Hemi Metals your reliable partner for robust and thoroughly tested steel bar stock.
The composition of EN-44 Carbon Steel is carefully balanced to deliver exceptional mechanical strength. It is known for its high tensile strength and impressive toughness, which makes it highly resistant to wear and impact. This combination of properties is achieved through its specific carbon and alloy content. This blend results in a material that can handle significant stress and heavy loading conditions without failing, providing a reliable foundation for components that face constant, rigorous use.
| Specifications | ASTM B446 / ASTM SB446 |
| size | 2-100mm A/F |
|---|---|

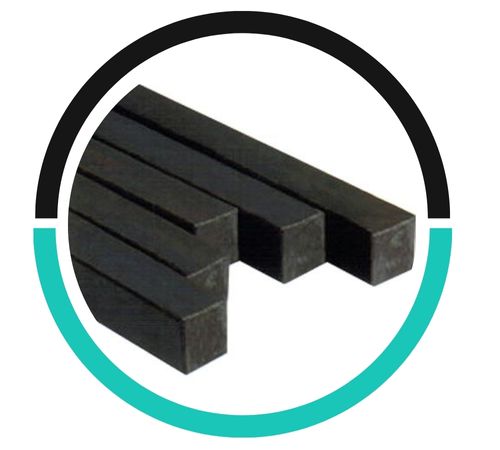

| Square bar size | 4 to 100mm |
| Flat bar size | Thickness: 2 -100mm Width: 10 to 500mm |
| Round bar size | Diameter: 3-~800mm |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

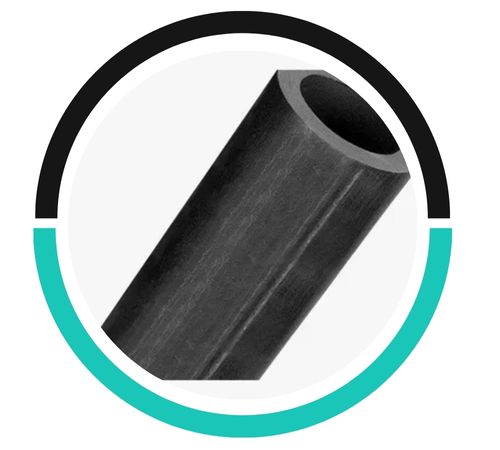

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline, Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Welding Rod, T-Bar, Rod, Precision Ground Bar, Channel Bar, Square, Flat Bar, Blocks, Round Rod, Hollow, Rings, Rectangle, Hex (A/F), Triangle, Threaded, Profiles, Billet, Ingot, I/H Bar, Half Round Bar, Forging etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
Yes, Carbon Steel EN-44 Bars can be heat-treated to improve mechanical properties such as strength and hardness. Common treatments include annealing, quenching, and tempering, depending on application requirements.
Carbon Steel EN-44 Bars are used in manufacturing automotive components, tools, and industrial equipment due to their excellent toughness, wear resistance, and high tensile strength, making them suitable for heavy-duty applications.
Carbon Steel EN-44 Bar offers high tensile strength (~700-850 MPa), excellent toughness, good wear resistance, moderate ductility, and hardness (~230-290 HB), making it suitable for heavy-duty applications.
For any application that demands unwavering strength, EN-44 Carbon Steel Bars are an excellent choice. They are particularly well-suited for the manufacturing of high-stress components like gears, shafts, studs, and bolts. You will often find this grade of steel at work in the automotive, agricultural, and general engineering industries. From the drivetrain of heavy machinery to the critical parts of industrial equipment, EN-44 provides the backbone for projects where failure is not an option, ensuring long-lasting performance under pressure.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
