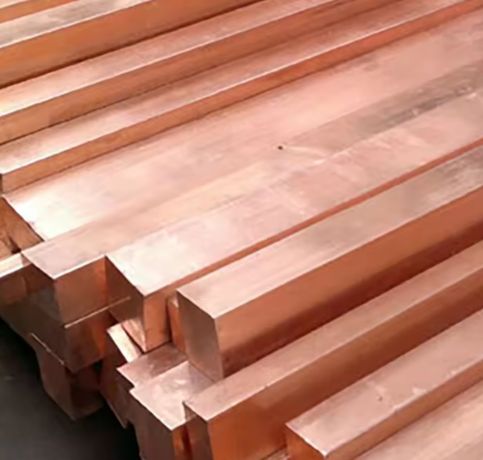

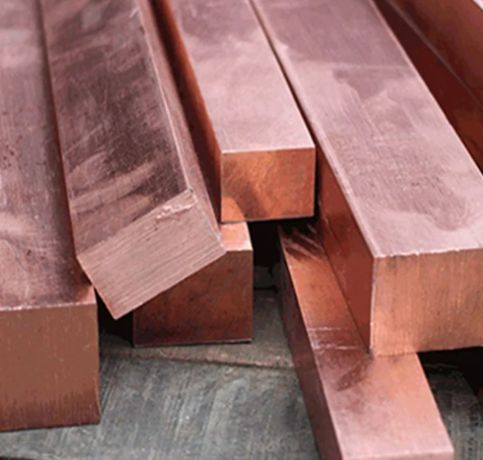

Based in the industrial heart of Hamilton, New Zealand, Hemi Metals is a trusted name for quality and reliability in specialty metals. We take pride in supplying robust and precision-engineered materials, including our range of Copper Nickel Square Bars. Sourced and prepared with careful attention to detail, these bars are a cornerstone for demanding projects where performance in challenging environments is non-negotiable. We understand that your work requires materials you can count on, and that’s the standard we deliver with every piece.
The composition of these bars, primarily a blend of copper and nickel, is carefully balanced to deliver exceptional resistance to corrosion, especially from saltwater. This alloy is further enhanced with small additions of iron and manganese, giving the material remarkable strength and durability. The result is a square bar that not only withstands aggressive conditions but also offers excellent mechanical properties, including high tensile strength and good ductility, making it both strong and workable for various fabrication needs.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Square Bars are customizable. They can be tailored in terms of size, shape, length, and specific alloy composition to meet the precise requirements of various industrial applications.
You’ll find these square bars at work in some of the most critical applications, particularly within the marine and offshore industries. They are a preferred choice for components in shipbuilding, such as propeller shafts, pump parts, and fasteners, where their resistance to seawater corrosion is invaluable. Beyond the ocean, they are also essential in power generation plants and desalination units for constructing condensers and heat exchanger components, proving their versatility and reliability in systems where failure is not an option.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hemi Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hamilton New Zealand
