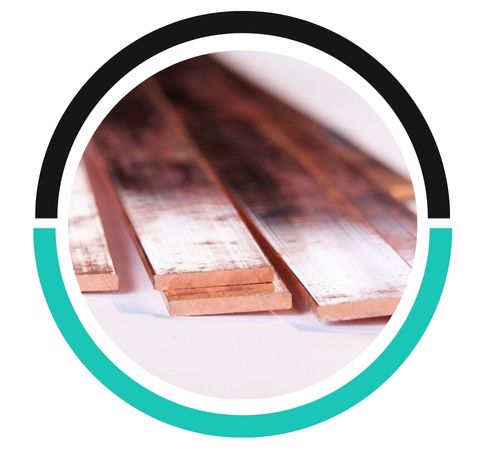

From the heart of Hamilton, New Zealand, Hemi Metals stands as a trusted manufacturer and supplier, bringing precision and reliability to the forefront of industrial supply. Our Copper Nickel rectangular bars are a testament to this commitment, crafted to meet the rigorous demands of various sectors. We understand that behind every project is a need for unwavering quality and performance, and it’s this understanding that drives our dedication to providing superior materials that you can count on for even the most challenging applications.
The composition of these bars, primarily a blend of copper and nickel, is specifically engineered to offer outstanding strength and durability. This alloy delivers excellent mechanical properties, including remarkable tensile strength and formidable resistance to corrosion, even in the most aggressive marine and chemical environments. The material’s inherent toughness ensures it can withstand significant stress and wear, making it a robust and long-lasting choice for critical components where failure is not an option, providing peace of mind through superior performance.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Rectangular Bars are customizable in terms of size, thickness, length, and alloy composition to meet specific requirements for various applications. Customization ensures optimal performance in marine, chemical, and industrial environments.
The versatility of Copper Nickel rectangular bars makes them indispensable across a wide range of industries. They are a fundamental component in marine engineering, used for constructing pumps, valves, and fittings that must endure saltwater corrosion. Beyond the sea, these bars are essential in the chemical and petrochemical plants for fabricating robust equipment, and in power generation for condensers and heat exchangers. Their reliable performance in harsh conditions makes them the go-to material for engineers and fabricators who require a solution that combines strength with exceptional longevity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hemi Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hamilton New Zealand
