Hemi Metals, based in Hamilton, New Zealand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Incoloy 800/800H/800HT Bars and Rods. These products are specifically crafted to excel in high-temperature and corrosive settings. With a wealth of experience in advanced alloys, Hemi Metals delivers items that adhere to strict international standards, catering to essential industrial needs. Their Incoloy bars and rods are known for their impressive strength, resistance to oxidation, and metallurgical stability, even when faced with prolonged high temperatures. Hemi Metals is committed to maintaining consistent quality, dependable delivery, and providing technical support, making them a trusted partner for industries like petrochemical, power generation, heat treatment, and engineering, both in New Zealand and around the globe.
The Incoloy 800/800H/800HT Bars and Rods are primarily made up of nickel, chromium, and iron, with carefully controlled additions of carbon and aluminum-titanium to boost stability. These alloys are recognized for their remarkable mechanical strength, good creep-rupture properties, and exceptional resistance to oxidation and carburization at high temperatures. The 800H and 800HT versions offer enhanced creep strength thanks to their higher carbon content and optimized heat treatment. Mechanically, these bars provide reliable toughness, dimensional stability, and resistance to thermal fatigue, making them perfect for extended high-temperature applications.
Incoloy 800/800H/800HT Bars Specifications
Specification : ASTM B166, A479 / ASME SB166, SA479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

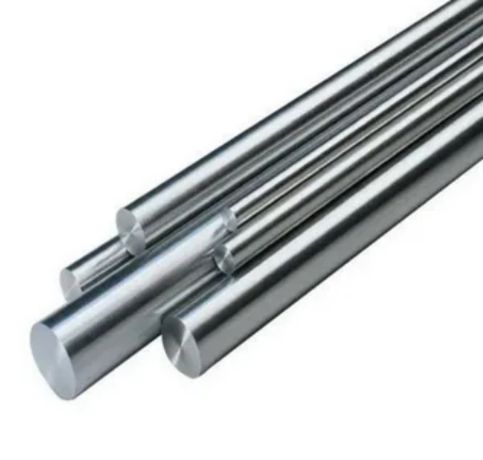

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

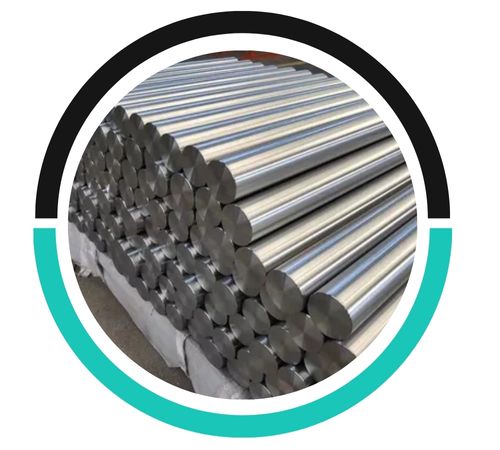

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

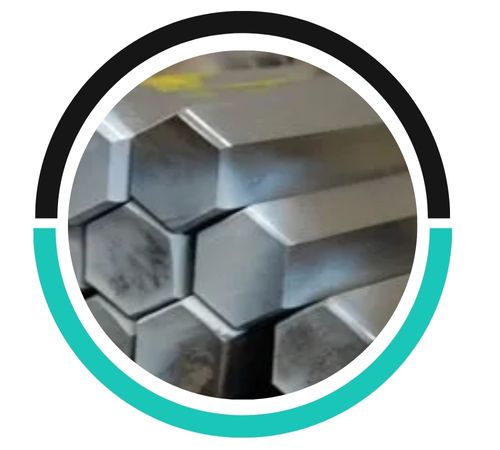

Incoloy Hex Bars : 4mm – 101.6mm

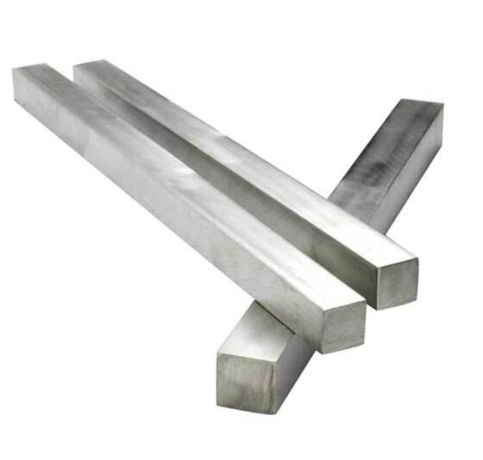

Incoloy Square Bars : 3mm – 100mm

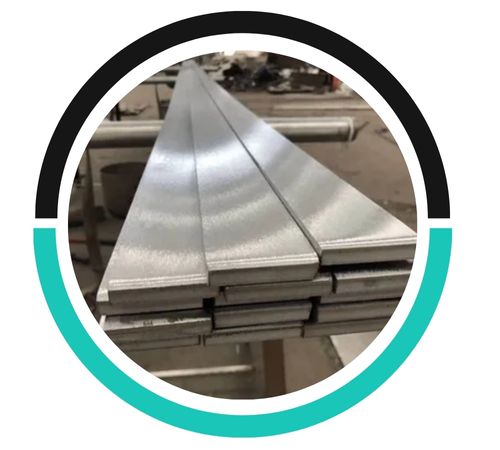

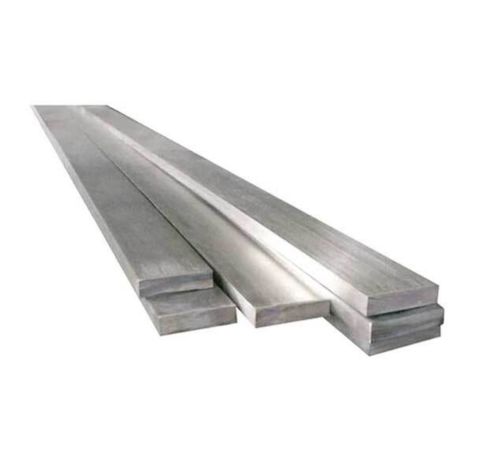

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

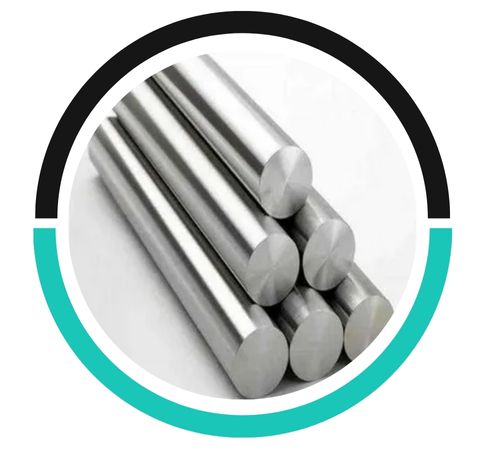

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | ЭИ670 | Z8NC33-21 | NCF 800H | NA 15(H) | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | ЭИ670 | – | NCF 800HT | NA 15(HT) | X8NiCrAlTi32-21 | XH32T |
| Incoloy 800 Round bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
Yes, Incoloy 800, 800H, and 800HT bars and rods are highly corrosion-resistant, particularly to oxidation and carburization at high temperatures. They are commonly used in harsh environments such as chemical processing and power generation due to their excellent resistance to sulfur and other corrosive elements.
Yes, Incoloy 800, 800H, and 800HT bars and rods can be customized in size and length to meet specific industrial requirements. They are available in various diameters, lengths, and finishes to suit different applications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
Incoloy 800/800H/800HT Bars and Rods find their place in various applications that demand long-lasting strength and oxidation resistance at elevated temperatures. They’re frequently used in heat exchangers, furnace components, petrochemical processing equipment, and power generation systems. These alloys shine in environments with carburizing or oxidizing gases, making them ideal for reformer tubes, headers, radiant coils, and superheater components. Their high creep-rupture strength and metallurgical stability enable them to endure thermal cycling and corrosive conditions, making them vital materials in chemical plants and other demanding settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
