Hemi Metals, located in Hamilton, New Zealand, stands out as a top-notch manufacturer and supplier of high-quality Nickel Alloy 201 Bars and Rods. Renowned for their precision, reliability, and deep technical know-how, Hemi Metals crafts products specifically designed for industries that demand exceptional corrosion resistance and stability at high temperatures. Their Nickel Alloy 201 Bars and Rods are made using cutting-edge metallurgical techniques, guaranteeing consistent purity, impressive mechanical performance, and long-lasting durability. Catering to sectors like chemical processing, petrochemical, marine, and power generation, Hemi Metals ensures a reliable supply, prompt delivery, and expert support, making them a go-to source for premium nickel alloy solutions.
Nickel Alloy 201 Bars and Rods are mainly made from commercially pure nickel with a carefully controlled carbon content, which boosts their resistance to graphitization at elevated temperatures. This alloy is known for its excellent corrosion resistance in acidic, alkaline, and neutral environments. On the mechanical side, Nickel 201 boasts good tensile strength, high ductility, and remarkable thermal and electrical conductivity. It maintains stability during thermal cycling and shows strong resistance to stress-corrosion cracking. With its blend of purity, toughness, and high-temperature stability, Nickel Alloy 201 is perfect for demanding industrial applications that require durability and chemical resistance.
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |

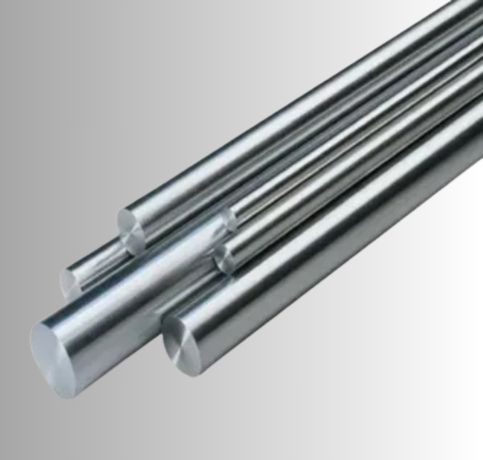

| Round bar size | Dia: 3mm~800mm |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |

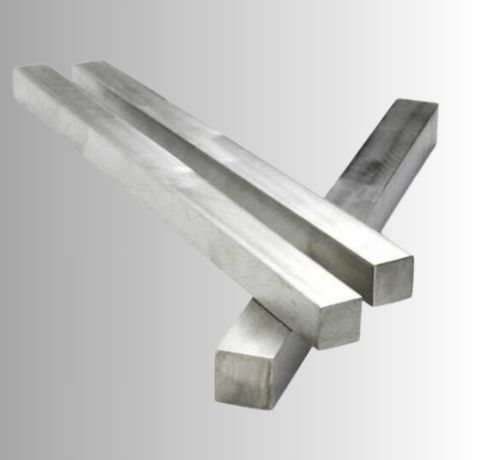

| Square bar size | 4mm to 100mm |

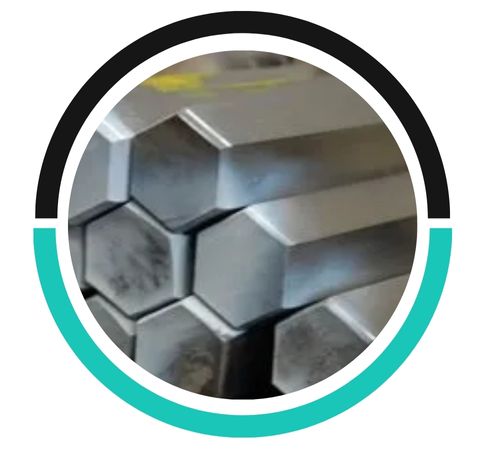

| Hex Bar size | 2mm to 100mm A/F |

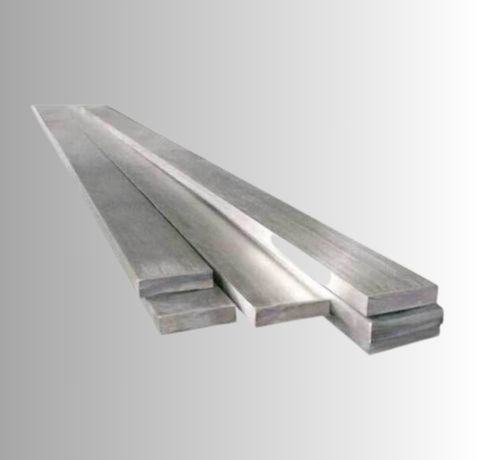

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |

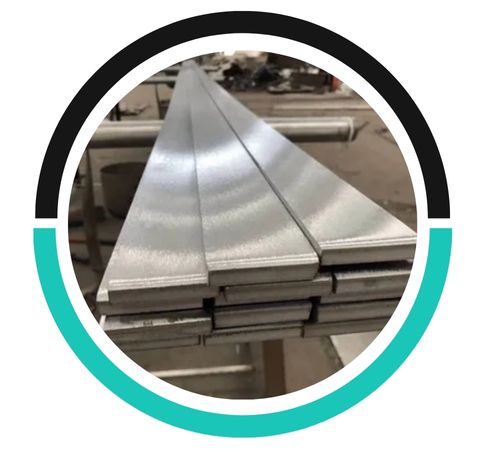

| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |
| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |
| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
|
Grade |
Fe |
Si |
C |
S |
Ni |
Mn |
Mg |
Cu |
Ti |
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201 |
0.4 max |
0.2 max |
0.02 max |
0.01 max |
99.0 min |
0.35 max |
0.15 max |
0.25 max |
0.1 max |
|
Density |
Elongation |
Tensile Strength |
Melting Point |
Yield Strength (0.2%Offset) |
|---|---|---|---|---|
|
8.9 g/cm3 |
45 % |
Psi – 67000 , MPa – 462 |
1446 °C (2635 °F) |
Psi – 21500 , MPa – 148 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
GOST |
BS |
JIS |
EN |
|---|---|---|---|---|---|---|---|
|
Nickel 201 |
N02201 |
2.4068 |
– |
НП-2 |
NA 12 |
NW 2201 |
NLC-Ni 99 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm).
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Yes, Nickel Alloy 201 rods can be welded using various welding techniques, including TIG and MIG welding.
Nickel Alloy 201 bars exhibit excellent corrosion resistance, high thermal conductivity, good mechanical properties, and outstanding weldability, especially in reducing environments.
Nickel Alloy 201 rods are available in various sizes, typically ranging from 1/8" to 3" in diameter, and come in finishes such as bright, polished, and cold drawn.
Nickel Alloy 201 Bars and Rods find extensive use in industries that need to withstand corrosive chemicals and high-temperature conditions. They’re commonly found in chemical and petrochemical plants, serving in equipment like caustic evaporators, heat exchangers, reactors, and storage tanks. In the realms of electronics and electrical engineering, they’re utilized for components that need high conductivity and thermal stability. The marine and offshore industries also rely on them for parts that come into contact with seawater and alkaline environments. Additionally, Nickel Alloy 201 is employed in food processing, synthetic fiber production, and more.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
