Hemi Metals, located in Hamilton, New Zealand, is a reputable manufacturer and supplier that focuses on high-performance alloys, such as Nitronic 30 Bars and Rods. They pride themselves on their commitment to quality, precision, and reliability, catering to a wide array of industries that demand exceptional corrosion resistance, strength, and durability. The Nitronic 30 products are crafted under strict quality standards to guarantee consistent performance, even in the toughest environments. By blending advanced metallurgical knowledge with modern production methods, Hemi Metals delivers solutions that meet both standard and custom specifications, solidifying their status as a top supplier of specialty stainless steels in New Zealand.
Nitronic 30 Bars and Rods are mainly made up of iron, chromium, nickel, and nitrogen, with small amounts of manganese and silicon. This alloy is known for its outstanding corrosion resistance, especially in oxidizing and chloride-rich settings, along with impressive strength and toughness. The addition of nitrogen boosts yield strength and fatigue resistance while ensuring excellent weldability and formability. Nitronic 30 maintains stable mechanical properties across a broad temperature range, making it perfect for heavy-duty applications where performance under stress and in corrosive conditions is essential. Typical tensile strength falls between 860 to 900 MPa, with yield strength around 450 to 500 MPa.
| Grade | Nitronic 30 Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

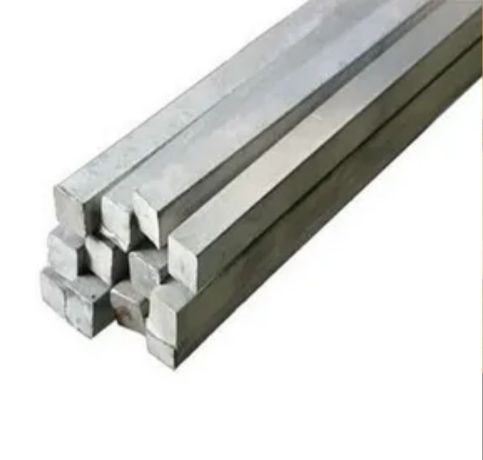

| Nitronic 30 Square bar size | 4 to 100mm |
| Nitronic Alloy 30 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S20400 Hex Bar size | 2-100mm A/F |
| Nitronic 30 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

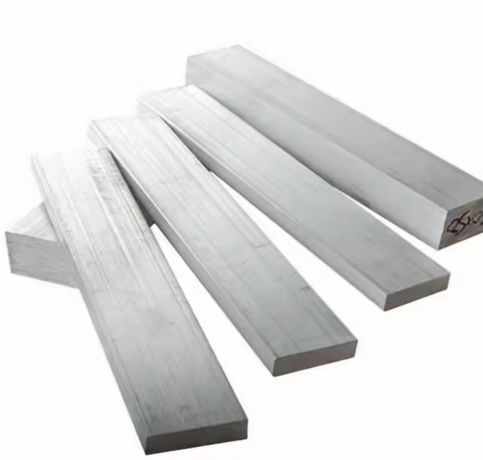

| Nitronic Alloy 30 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S20400 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 30 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 30 Section | 3.0 to 12.0mm thickness |
| Nitronic UNS S20400 Round bar size | Diameter: 3-~800mm |
| Nitronic 30 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 30 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 30 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 30 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S20400 Technique | Nitronic 30 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 30 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 30 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 30 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 30 | 0.030 | 17.0 – 15.0 | 0.030 | 1.00 | 0.30 – 0.15 | 3.00 – 1.50 | 17.00 – 15.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 30 Round bar | S20400 | – |
Common diameters for Nitronic 30 rod typically range from 1/8" to 6", with popular sizes including 1/4", 1/2", 3/4", 1", and 2" for various industrial applications.
Nitronic 30 bars typically come with a smooth finish, although a rough finish may also be available depending on the supplier or the specific processing requirements.
Nitronic 30 rod is typically available in sizes ranging from 1/8" to 3" in diameter. Finishes include hot-rolled, cold-drawn, and polished, offering a smooth, uniform surface for various applications.
Nitronic 30 Bars and Rods find extensive use in chemical processing equipment, heat exchangers, and industrial machinery that require high corrosion resistance and strength. Their durability and toughness make them well-suited for pumps, valves, and fasteners that face harsh chemicals and saltwater environments. Moreover, Nitronic 30 is a popular choice in marine, aerospace, and automotive sectors for components that undergo significant stress and wear. Its excellent weldability and formability also enable it to be shaped into complex designs for specialized applications, including architectural structures.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
