Nitronic 40 Bars and Rods are top-notch austenitic stainless steel products designed to deliver outstanding corrosion resistance, toughness, and durability. They shine in both high and low-temperature settings, providing remarkable stability and resistance to oxidation. This alloy is prized for its impressive mechanical properties, boasting high tensile strength and good ductility, making it perfect for heavy-duty industrial applications. You’ll find Nitronic 40 Bars and Rods in various fields like aerospace, chemical processing, marine, and industrial sectors, where dependable performance and corrosion resistance are a must.
The composition of Nitronic 40 primarily includes chromium, nickel, and manganese, with added silicon and nitrogen to boost strength and corrosion resistance. This alloy showcases excellent tensile and yield strength while keeping good toughness across a broad temperature range. It stands out with its superior resistance to pitting, crevice corrosion, and stress-corrosion cracking. Plus, Nitronic 40 maintains stable mechanical properties even under thermal cycling and offers good weldability and formability, making it a great choice for precision-engineered components that need both strength and corrosion resistance.
| Grade | Nitronic alloy 40 Round Bar bars |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

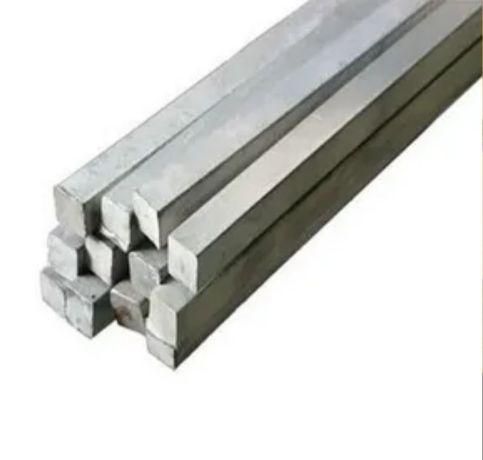

| Nitronic 40 Square bar size | 4 to 100mm |
| Nitronic Alloy 40 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 40 Nitronic Alloy Hex Bar size | 2-100mm A/F |
| Nitronic 40 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

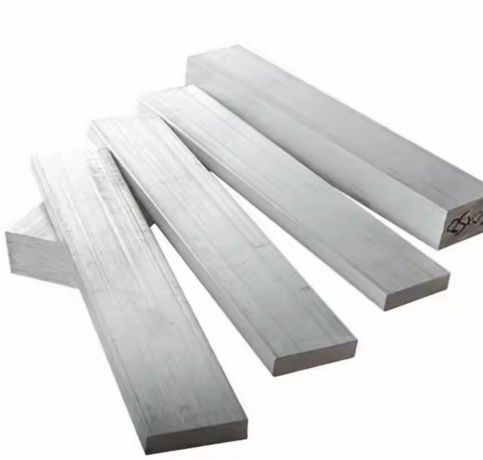

| Nitronic Alloy 40 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| 40 Nitronic Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 40 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 40 Section | 3.0 to 12.0mm thickness |
| 40 Nitronic Alloy Round bar size | Diameter: 3-~800mm |
| Nitronic 40 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 40 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 40 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 40 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| 40 Nitronic Alloy Technique | Nitronic 40 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 40 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 40 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 40 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 40 | 0.08 | 10.0 – 8.0 | 0.030 | 1.00 | 0.40 – 0.15 | 7.50 – 5.50 | 21.50 – 19.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 40 Round Bars | S21900 | – |
Nitronic 40 bars are available in both rough and smooth finishes, depending on the manufacturing process and customer requirements. Smooth finishes are typical for applications needing better aesthetics or precision.
Nitronic 40 rods are available in sizes ranging from 3mm to 300mm diameter. Finishes include bright, polished, black, and rough-turned, catering to industrial and decorative applications.
Yes, Nitronic 40 bar can be welded using standard methods like TIG, MIG, and shielded metal arc welding. Preheating is not required, and post-weld annealing ensures optimal properties.
You’ll see Nitronic 40 Bars and Rods commonly used in aerospace components, cryogenic equipment, chemical processing machinery, and marine hardware, thanks to their exceptional corrosion resistance and mechanical strength. They’re perfect for hydraulic systems, fasteners, valves, shafts, and structural parts that face harsh environments. In industrial settings, Nitronic 40 is the go-to for high-stress components, pressure vessels, and heat exchangers that demand long-lasting durability. Its excellent stability at varying temperatures makes it suitable for both high-temperature and cryogenic applications across multiple engineering fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
