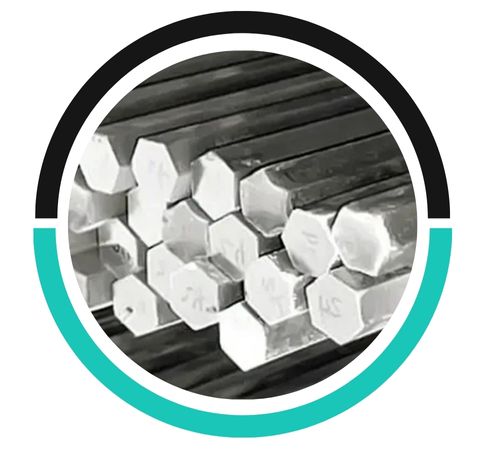

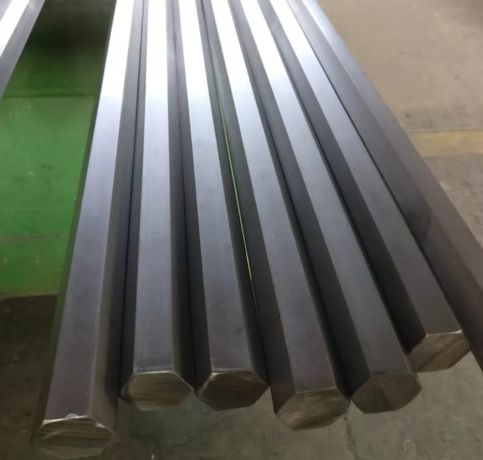

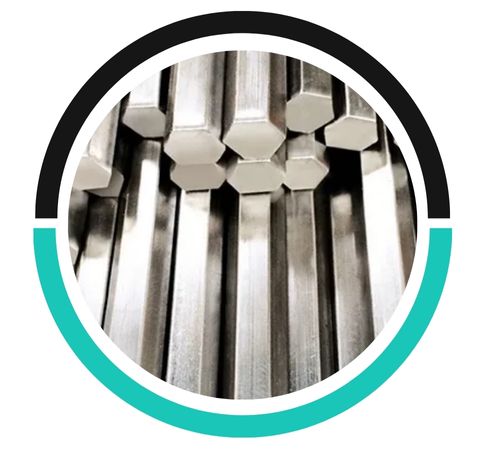

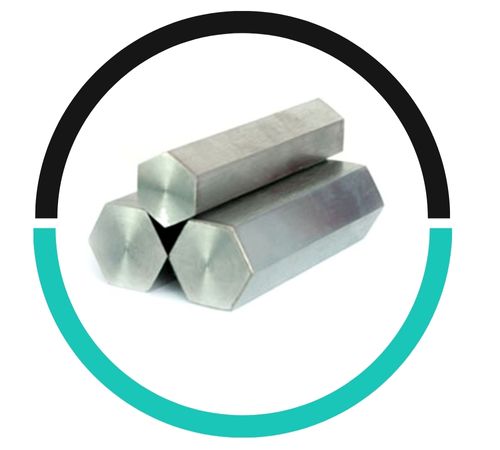

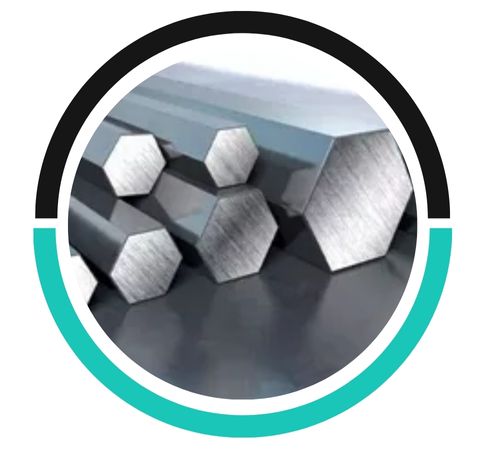

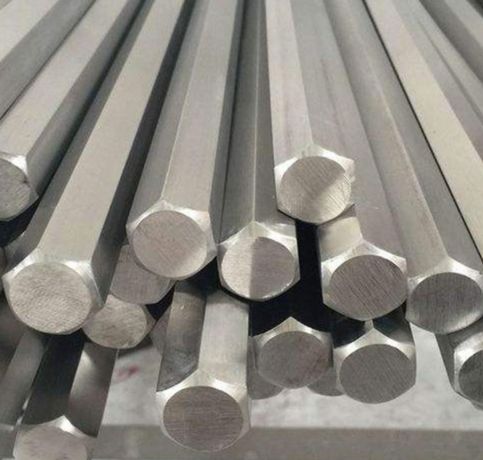

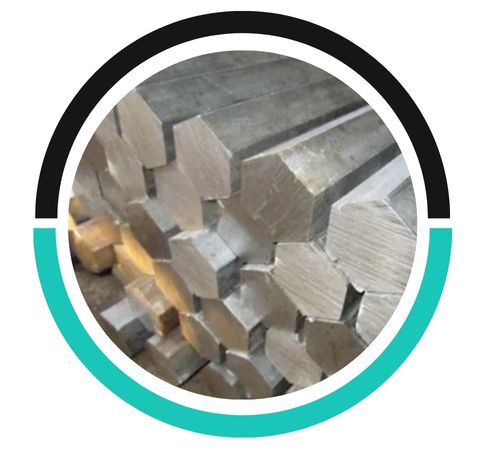

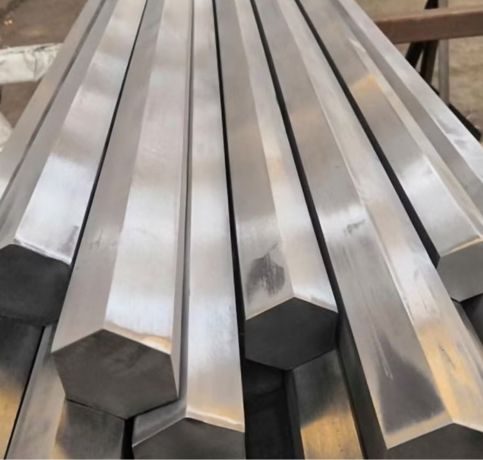

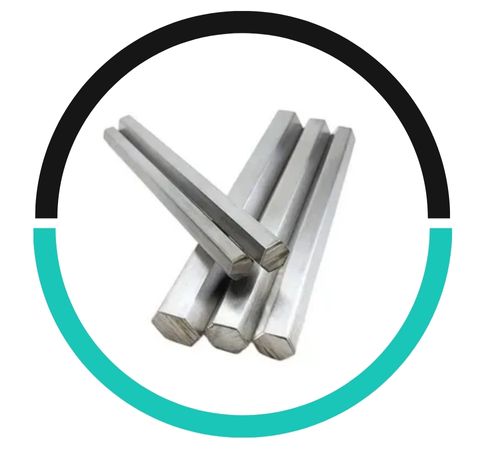

Stainless Steel 17-4 PH Hex Bars and Rods are prized for their remarkable strength, hardness, and resistance to corrosion, making them perfect for tough engineering tasks. As a precipitation-hardening stainless steel, 17-4 PH boasts impressive mechanical properties whether it’s in its annealed or heat-treated state. The hexagonal design not only improves machinability but also ensures stability and precision during fabrication, making these bars and rods ideal for creating high-accuracy components. Their ability to maintain strength even at high temperatures, along with dependable toughness and dimensional stability, makes them a go-to choice in industries like aerospace, petrochemical, marine, and high-performance manufacturing.
These hex bars and rods are made with key elements like chromium, nickel, and copper, which allow for precipitation hardening through heat treatment. They deliver outstanding tensile strength ranging from 930 to 1310 MPa and yield strength between 860 and 1100 MPa, depending on the specific condition (H900–H1150). The alloy also offers good corrosion resistance similar to that of 304 stainless steel in many settings, while excelling in hardness and fatigue strength. With a high strength-to-weight ratio, excellent wear resistance, and stability under thermal and mechanical stress, they are perfect for critical load-bearing applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 max | 15.00-17.50 max | 3.00-5.00 max | Bal | 1.0 | 3.0-5.0 | 0.40 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-4 PH Hex Bar and Rod can be used for structural applications due to its high strength, excellent corrosion resistance, and ability to withstand extreme environments, making it ideal for demanding conditions.
Common challenges when using Stainless Steel 17-4 PH Hex Bar include difficulties in machining due to its hardness, sensitivity to stress corrosion cracking in certain environments, and the need for precise heat treatment for optimal properties.
You’ll find Stainless Steel 17-4 PH Hex Bars and Rods in a variety of applications, including aerospace components, turbine parts, petrochemical processing equipment, high-pressure valves, pump shafts, and marine hardware, all thanks to their strong mechanical properties. They’re also commonly used to make fasteners, couplings, gears, and other precision-machined parts that require high strength and corrosion resistance. In sectors like defense, automotive, and energy, these bars and rods are essential for applications that demand reliability in extreme conditions. Their unique blend of hardness, durability, and machinability makes 17-4 PH hex bars and rods a top pick for advanced engineering projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
