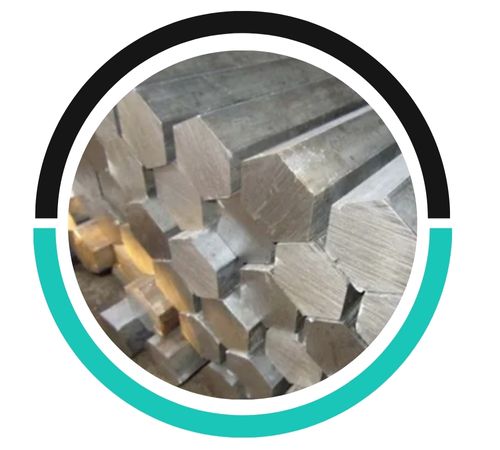

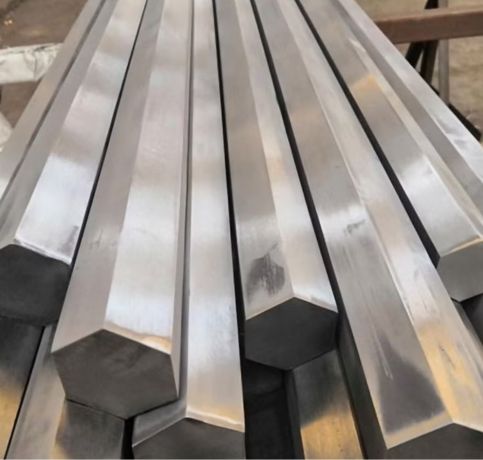

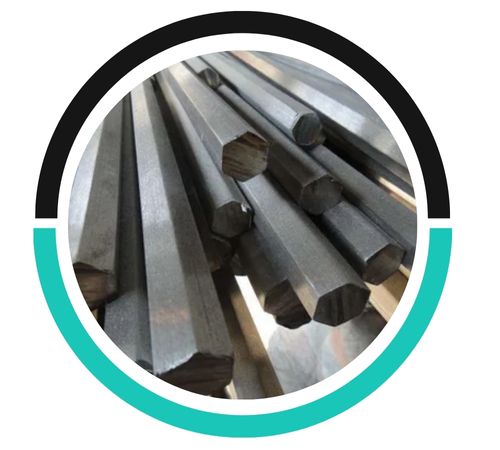

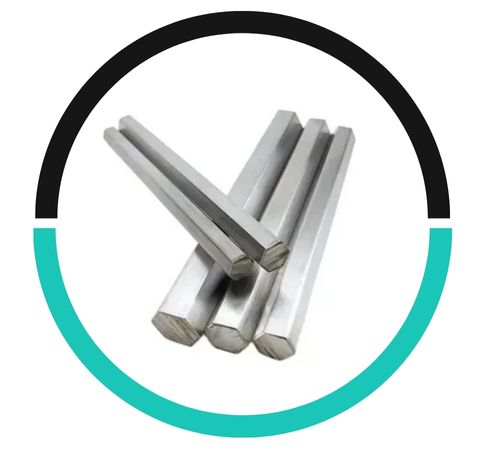

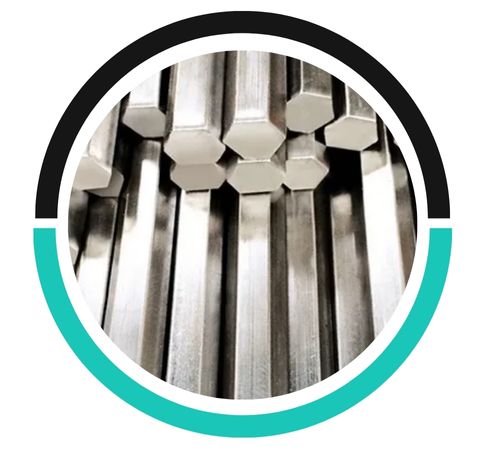

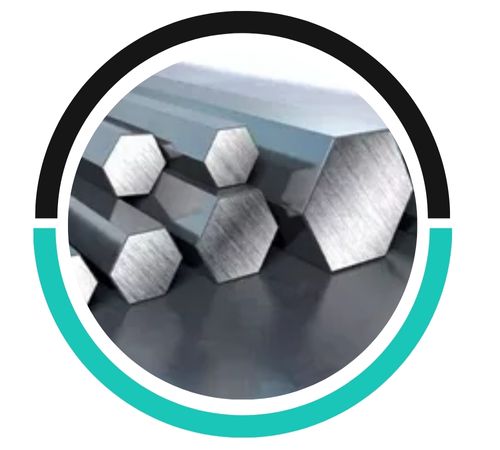

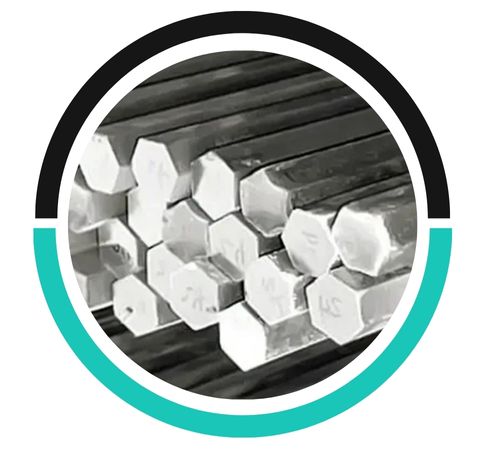

Stainless Steel 202 Hex Bars and Rods are highly regarded for their impressive strength, durability, and budget-friendly performance, making them a go-to choice for a variety of industrial and structural uses. As a low-nickel austenitic grade, SS 202 provides solid corrosion resistance in mild environments, along with excellent toughness and formability. The hexagonal shape not only enhances grip but also ensures stability during machining, making these bars and rods ideal for precision components and high-speed production. Their blend of affordability, mechanical strength, and versatility has made them a favorite in the manufacturing and engineering fields.
These hex bars and rods are primarily made up of chromium and manganese, with less nickel than 304, which adds to their cost-effectiveness. They boast a tensile strength of about 515–650 MPa and a yield strength of around 275 MPa, ensuring reliable structural performance. The alloy also maintains good ductility, impact resistance, and work-hardening capabilities, which are essential for machining, forming, and welding tasks. With moderate corrosion resistance, SS 202 hex bars and rods are well-suited for a range of commercial and industrial settings.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 202 | ≤ 0.15 | 17- 19 | 7.50-10 | 4-6 | ≤ 0.060 | ≤ 0.030 | ≤ 1 |
| Element | Tensile Strength | Yield Strength | Elongation |
| SS 202 | 515 MPa | 275 MPa | 40% |
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Stainless Steel 202 Hex Bar and Rod is commonly used in manufacturing hardware, fasteners, and structural components. It finds applications in industries such as automotive, construction, food processing, and chemical equipment. Its resistance to corrosion and durability makes it ideal for components exposed to harsh environments, including marine and architectural applications, as well as in the production of machinery.
Stainless Steel 202 Hex Bars and rods are manufactured through processes like extrusion, forging, and cold drawing. The metal is heated, shaped, and then cooled to achieve desired dimensions. This process ensures uniformity, strength, and surface finish. Quality control during each stage guarantees durability, corrosion resistance, and precise tolerances in the final product.
Yes, Stainless Steel 202 Hex Bar/Rod can be welded easily using techniques like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. Preheating and proper filler materials are recommended to avoid cracking and maintain weld integrity.
You’ll find Stainless Steel 202 Hex Bars and Rods commonly used in making fasteners, nuts, bolts, shafts, and precision components, thanks to their stable geometry and ease of machining. They’re perfect for architectural railings, furniture frames, kitchen equipment, and general hardware applications where both strength and aesthetics matter. In the automotive and machinery sectors, they’re utilized in components that require moderate corrosion resistance and high durability. Their versatility, cost-effectiveness, and robust performance make SS 202 hex bars and rods an excellent choice for various engineering, construction, and consumer product applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
