Hemi Metals, located in Hamilton, New Zealand, stands out as a top supplier of premium Titanium Grade 12 Bars, known for their remarkable strength and resistance to corrosion. Committed to precision and reliability, Hemi Metals guarantees that every bar adheres to stringent international standards, ensuring consistent performance even in the most demanding industrial settings. These Titanium Grade 12 Bars are perfect for industries that need materials that are not only durable and lightweight but also resistant to corrosion. By providing expert advice, customized solutions, and quick delivery, Hemi Metals has earned a reputation as a reliable partner for manufacturers, engineers, and fabricators both in New Zealand and around the globe.
Titanium Grade 12 Bars are made from alloyed titanium, typically featuring 0.8–1.2% nickel, 0.3–0.5% molybdenum, and a trace amount of iron, with the rest being titanium. This unique blend offers outstanding corrosion resistance, especially in both oxidizing and reducing environments, as well as in seawater. In terms of mechanical properties, Grade 12 titanium boasts a tensile strength ranging from 550 to 750 MPa, a yield strength between 480 and 680 MPa, and an elongation of 20 to 25%, striking a balance between moderate strength and excellent ductility. The bars are easy to work with, can be heat-treated, and maintain stability even at high temperatures, making them ideal for critical and long-lasting applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

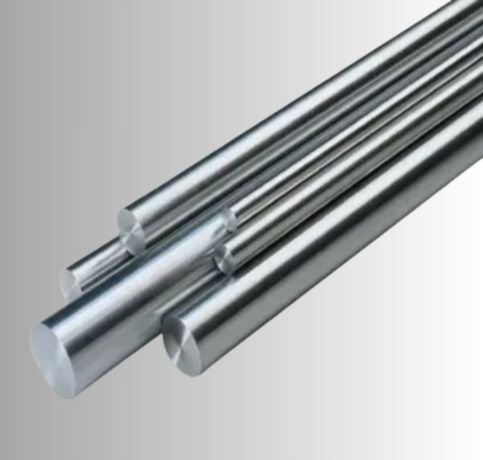

| Round bar size : | Diameter: 3-~800mm |

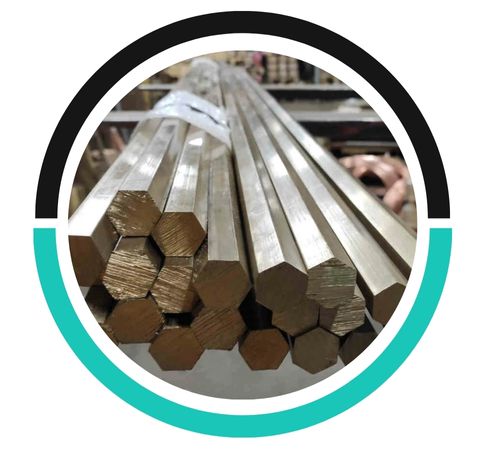

| Hex Bar size : | 2-100mm A/F |

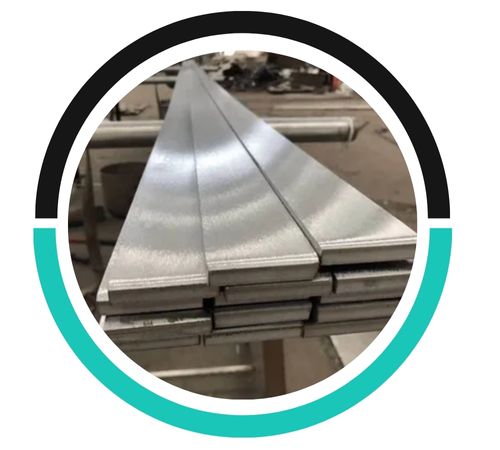

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

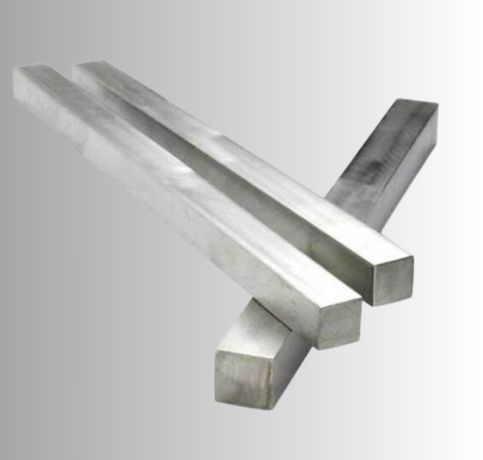

| Square bar size : | 4 to 100mm |

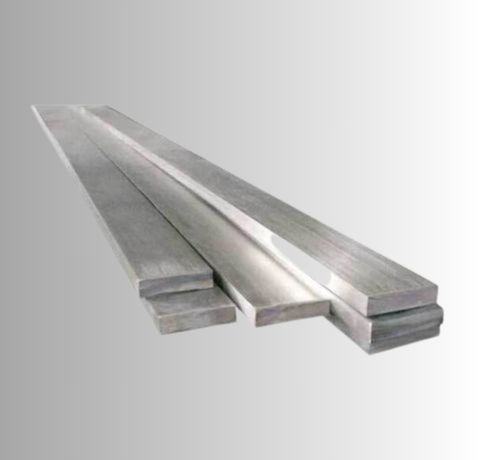

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@hemimetals.co.nz
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
Titanium Grade 12 Bars are extensively utilized in various sectors, including aerospace, chemical processing, marine, desalination, and power generation. They are commonly found in heat exchangers, condensers, chemical tanks, pressure vessels, and structural components that face harsh conditions. Their superior corrosion resistance and mechanical strength make them particularly suitable for equipment used in seawater, industrial chemical processing facilities, and high-performance marine hardware. Additionally, Titanium Grade 12 Bars are also used in medical devices and desalination systems, where reliability is crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hemi Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hamilton New Zealand
